Ekho Hybrid Wireless

Hochiki's New Hybrid Wireless Fire Detection Range





Expander Network Example





A New Generation of Hybrid Wireless Fire Detection





Ekho is a wireless based family of products which can be fully integrated into Hochiki’s renowned ESP intelligent hardwired system.



At the core of the system is the wireless Translator module. It is hard-wired to the fire alarm control panel loop and communicates continuously with the wireless devices. Wireless Expander modules are used to extend the radio mesh network, increasing the reach and capacity of the overall system.



Ekho is the next generation of hybrid wireless fire detection from Hochiki and supersedes the FIREwave system.









System Architecture



System Architecture





Self-Configuring Mesh Network





The Ekho Expander modules create a self-configuring mesh network, which constantly relays field device signals back to the Translator module. Each wireless device determines which Expander has the strongest signal path and automatically connects to it. The Expander mesh network guarantees an “always on” connection between the wireless devices and the Translator/fire control panel.



Self-Configuring Mesh




Self-Configuring Mesh provides:



  • High level of reliability
  • Automatically adapting to changing operating conditions: all devices automatically choose a parent expander depending on the quality of connection
  • A simple design and commissioning process





Advantages for installers



  • Simplified design and planning process
  • Faster commissioning process
  • Less time on site.



Expander Network 1



In this example, the Ekho sensor is connected to the Translator via Expander 1, as it is the strongest signal pathway.



Expander Network 1



If the signal to Expander 1 is compromised, the sensor automatically finds and connects to an Expander with the next strongest signal pathway, in this example, Expander 2.





Ekho is available in various operating frequencies and support is available from our regional offices. Product part codes may vary depending on the region, please contact your local office for details.





868 MHz



Hochiki Europe (UK)

+44 (0)1634 260133

[email protected]

www.hochikieurope.com







868 MHz



Hochiki Italia

+39 045 574028

[email protected]

www.hochiki.it







865 MHz



Hochiki India

+91 (0)124-4777930

[email protected]

www.hochiki.in







868 MHz



Hochiki Middle East

043724130

[email protected]

www.hochiki.ae







918 MHz



Hochiki Australia

(02) 9738 5566

[email protected]

www.hochikiaustralia.com



Listen to International Fire Protection's "Firecast".

A podcast where the replacement of Waking Watch schemes by systems such as Hochiki's Hybrid Wireless Ekho is discussed with Hochiki's Tony Obadipe and  FAFS spokesperson, Kevin Dodge.


Podcast duration: 26 minutes

Ekho Case Studies

Ekho Case Study - Atlantic Hotel

Ekho Case Study - Corte Regia Spa

Ekho Case Study - Fred Nicholson School

Ekho Case Study - London Apartments

Hybrid Wireless Devices

Optical, Thermal and Multi Criteria Sensors

Ekho sensors are supplied in three variants: Optical, Thermal and Multi Criteria, which cover a wide range of applications. The Optical and Multi Criteria detectors feature double dust traps and adaptive signal processing to prevent false alarms. Thermal detectors can respond to a fixed temperature threshold, or detect a rate of rise in temperature.



The range of Ekho devices provides a visually attractive wireless fire detection solution, encompassing a wide variety of installation types and sizes.



In addition, Hochiki’s dedicated team of technicians provides support to customers, and ensures that installation and maintenance processes remain transparent, effortless and focused on customers’ requirements.

Benefits

Key Benefits of the Ekho Range

Features

Key Features of the Ekho Range

Product Comparison

Ekho vs FIREwave

Comparison Table







Communication range between Translator and Expander, in metres



Comparison Table

* In open-air








Communication range between Expander and field device, in metres



Comparison Table

* In open-air

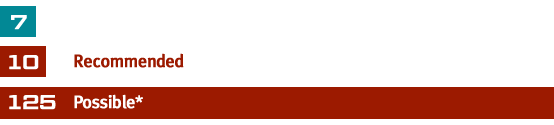

Maximum number of Expanders programmable on a Translator



Comparison Table

 * Within the 126-address capacity of associated Translator








Maximum Battery Life



Comparison Table

* Dependent on operational usage








Standards & Approvals



  • Quality Management System ISO 9001
  • EN54-25 Approved
  • Constancy of Performance 0051-CPR-1916
  • RED Compliant
  • Ekho technology proven in over 150,000 projects









Standards and Approvals





Applications

The Ekho range is adaptable to a broad range of environments

  • Castles
  • Cathedrals
  • Churches
  • Museums
  • Modular Construction
  • Remote Buildings
  • Asbestos sites
  • Temporary structures
  • Banks
  • Aesthetically sensitive interiors
  • Concrete structures
  • Historic / protected buildings
  • Prisons
  • Hotels
  • Offices
Learn more

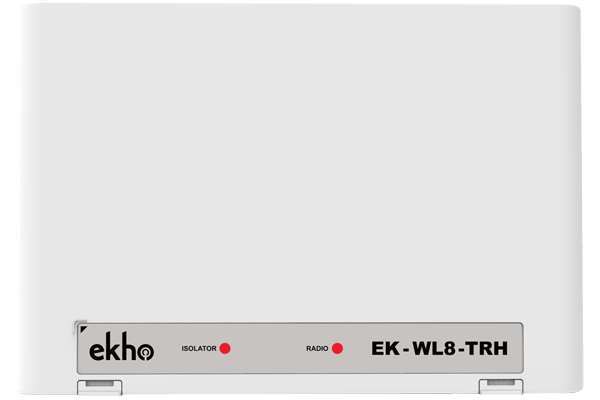

EK-WL8-TRH

Hybrid Wireless Translator Module

  • EK-TRH/RF (India)

  • EK-WL8-TRH/AU (Australia)

EK-WL8-EXP

Hybrid Wireless Expander Module

  • EK-EXP/RF (India)

  • EK-WL8-EXP/AU (Australia)

EK-WL8-O

Hybrid Wireless Optical Sensor

  • EK-O/RF (India)

  • EK-WL8-O/AU (Australia)

EK-WL8-H

Hybrid Wireless Heat Sensor

  • EK-H/RF (India)

  • EK-WL8-H/AU (Australia)

EK-WL8-OH

Hybrid Wireless Multi-Sensor

  • EK-OH/RF (India)

  • EK-WL8-OH/AU (Australia)

EK-WL8-OV

Hybrid Wireless Optical Sensor with Built-in Voice Alarm & VAD

  • EK-OV/RF (India)

  • EK-WL8-OV/AU (Australia)

EK-WL8-CP

Hybrid Wireless Manual Call Point

  • EK-CP/RF (India)

  • EK-WL8-CP/AU (Australia)

EK-WL8-SND

Hybrid Wireless Sounder

  • EK-SND/RF (India)

  • EK-WL8-SND/AU (Australia)

EK-WL8-OUT

Hybrid Wireless Output Module

  • EK-OUT/RF (India)

  • EK-WL8-OUT/AU (Australia)

EK-WL8-IN

Hybrid Wireless Input Module

  • EK-IN/RF (India)

  • EK-WL8-IN/AU (Australia)

EK-WL8-SK

Ekho Hybrid Wireless Survey Kit

  • EK-SK/RF (India)

  • EK-WL8-SK/AU (Australia)

UK / European Products & Data
