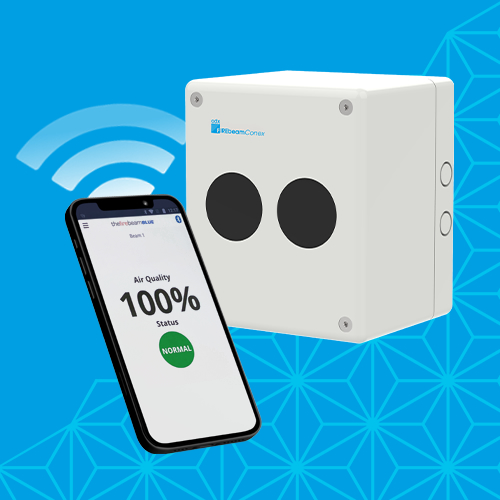

FIREbeam Conex

Wireless Control Revolution

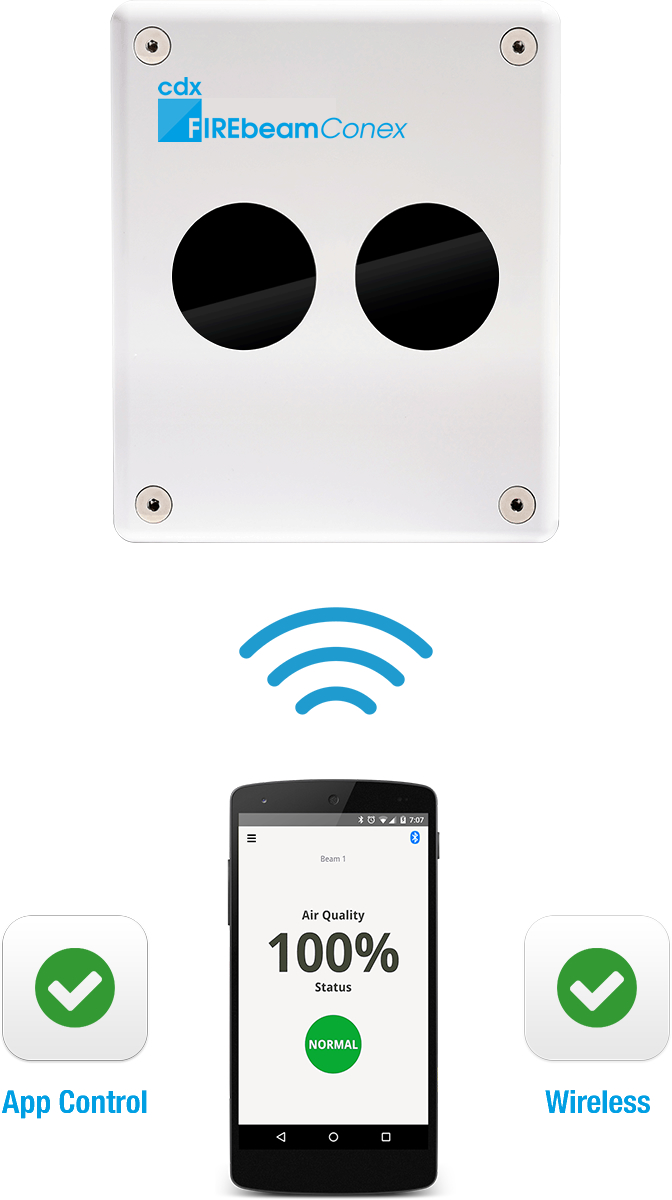

The FIREbeam Conex changes everything.

Using advanced Bluetooth® technology, you can commission and control every beam detector directly from your smartphone or tablet.

No hardwired controllers, no complex cabling, no site visits just to adjust settings.

Transform your fire safety installations with the world's most advanced conventional beam smoke detector featuring wireless Bluetooth® app control. Eliminate the need for hardwired controllers while maintaining the industry's most reliable detection performance.

Key Benefits:

Wireless Commissioning

via dedicated iOS and Android app

160 Metre Detection Range*

with motorised self-alignment

*with use of long-range extension kit

VdS Approved

(G221060) to EN 54-12:2015 standards

Multi-Language Support

in 7 languages

Ultra-fast alignment

under 3 minutes initial setup, 1 minute re-alignment

Unmatched Installation Efficiency

Save significant time and costs on every installation. With the FIREbeam Conex, there's no need to:

• Install and wire individual controllers

• Run extensive control cabling

• Schedule multiple site visits for adjustments

• Carry additional equipment for commissioning

How Does It Work?

An advantage of beam detectors is their ability to detect when smoke is scattered over wide areas. This is achieved due to the beam detectors using the obscuration method, which detects fire due to smoke particles obscuring the infra-red light along the sensing path.

When sufficient smoke blocks the infra-red light beam, reducing the received signal strength by a pre-determined setting, a fire condition is generated. Such detection sensitivity enables the beam to identify a fire before it spreads. Unwanted alarms due to the beam being totally obscured for a short period of time can be filtered out by well-designed products (Hochiki’s beam detectors, for example, use time-based algorithms to distinguish between unwanted obscuration and genuine fire conditions).

Reflective Beam Smoke Detectors are increasingly becoming the specifier’s choice as they work by combining the transmitter and receiver into one unit and returning the beam via a reflector at the opposite end of the protected space, allowing cabling to a single point and therefore significantly reducing installation time and cost.

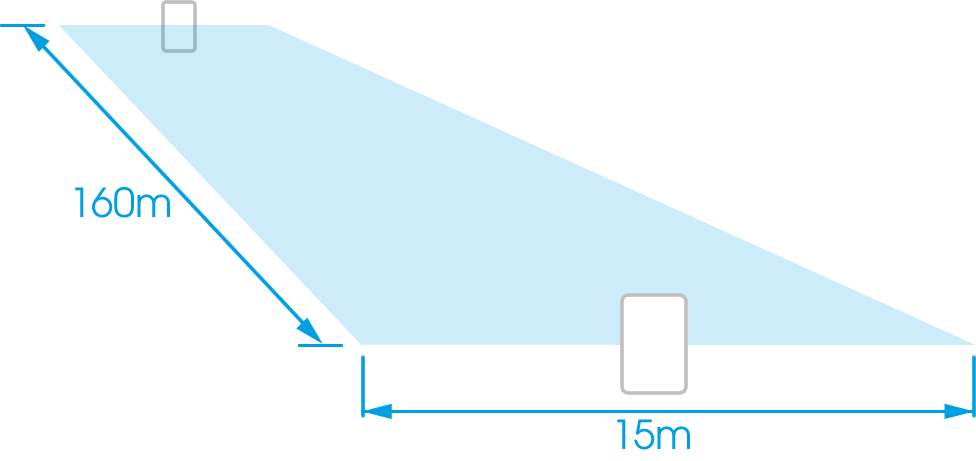

The motorised head's 160-metre range means you can cover areas of 2,400 square metres with a single beam, further reducing installation complexity and costs.

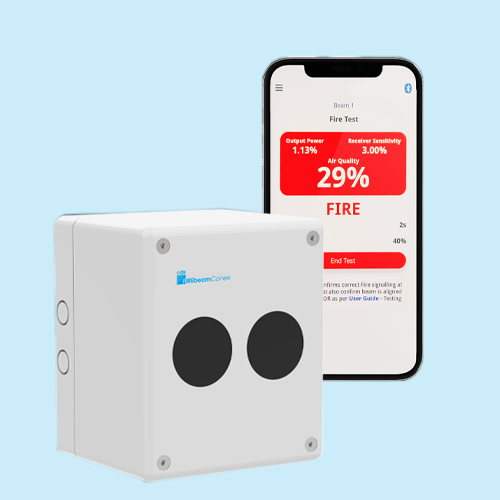

Complete App-Based Control

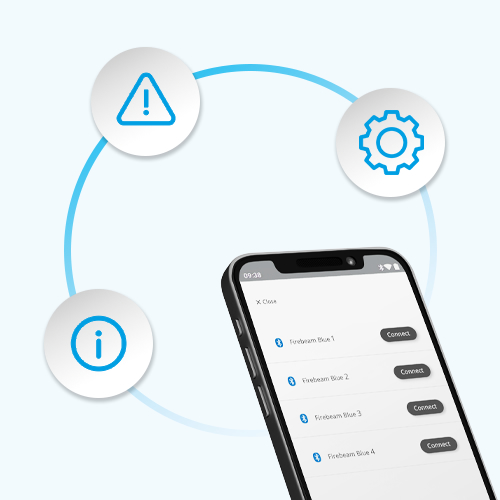

FIREbeam Conex is commissioned and controlled using a dedicated App available for both iOS and Android. From your phone or tablet you can now do everything that you would normally have done with a wired controller:

• Instant connection - via Bluetooth® (no internet required)

• Multi-beam management for large installations

• Real-time commissioning with visual feedback

• Mode switching for different operational requirements

• Maintenance scheduling and diagnostics

• Fire testing and system verification

• Detailed diagnostics and performance monitoring

Technical Excellence

The FIREbeam Conex incorporates years of optical beam innovation with cutting-edge technology:

• Enhanced optics with advanced components for superior performance


• Linear stepper motors for precise, rapid alignment


• Robust construction with IP65 protection rating


• Wide environmental tolerance (-10°C to +55°C)


• Low power consumption (5.5mA operational)


• Conventional detector compatibility with existing systems

Complete Solution

Each FIREbeam Conex kit contains:

• Beam head unit with motorised alignment
• Single reflector
• 3mm Allen key
• Comprehensive user manual
• Free iOS/Android app download

Optional Accessories:

• Mid-range reflector kit (70KIT140)
• Long-range reflector kit (140KIT160)
• Unistrut mounting adapter

Global Compliance & Support

• VdS Approved (G221060)


• EN 54-12:2015 compliant


• Multi-language app support (English, German, Spanish, French, Italian, Dutch, Czech)


• Worldwide availability with local support

Why Choose FIREbeam Conex?

Faster installations

Eliminate controller wiring and mounting.

Reduced costs

Fewer materials, less labour time.

Enhanced Flexibility

With wireless Bluetooth control.

Future-Proof Technology

App-based platform for ongoing updates.

Proven Reliability

Built on decades of optical beam expertise.
