ICP-E (SCI)

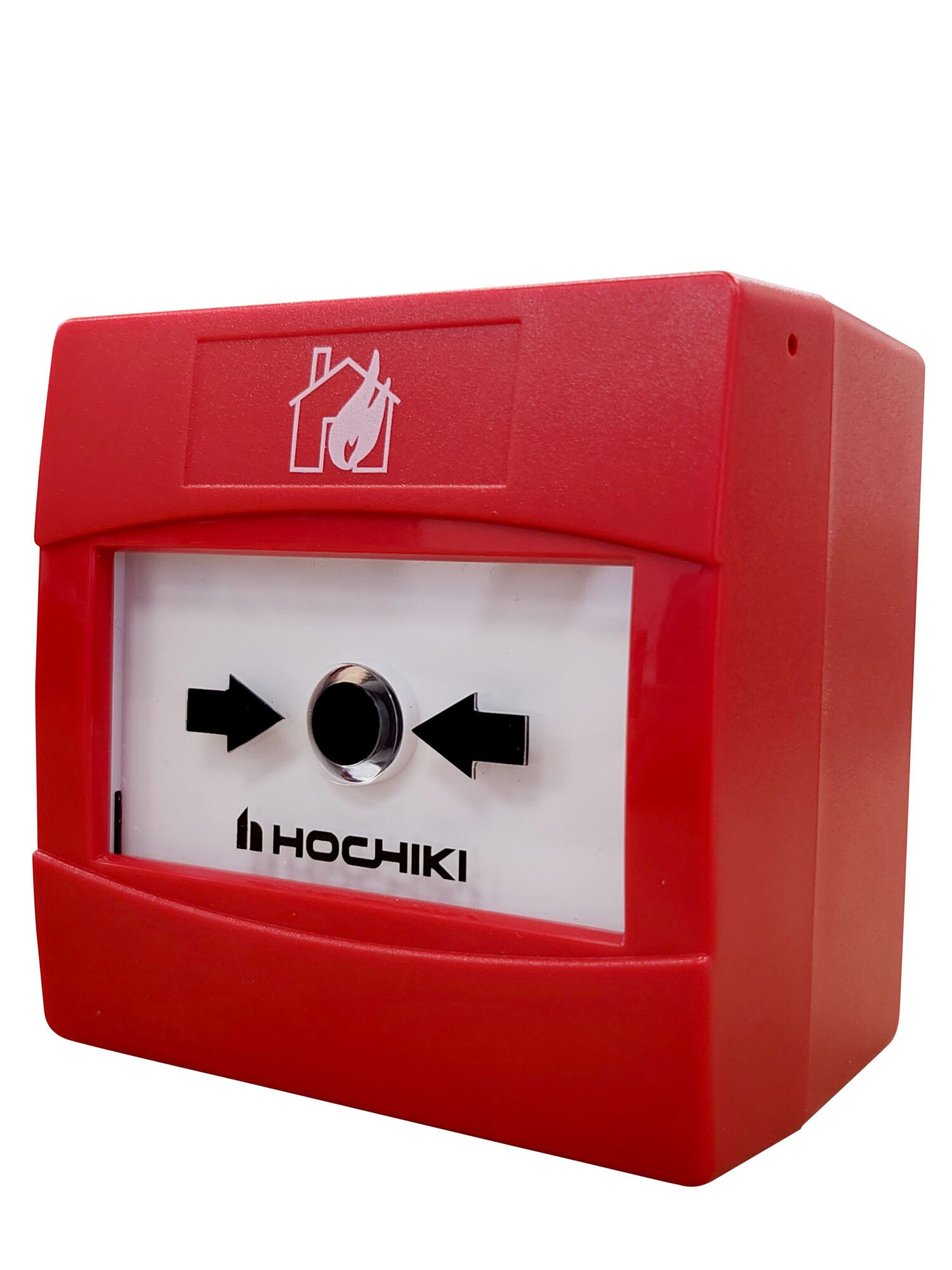

Model ICP-E(SCI) is a Manual Call Point with integral short-circuit isolator,which is fully compatible with Hochiki’s ESP analogue addressable protocol. The unit incorporates a bicoloured LED, which can be selected as pulsing/non-pulsing* for communications polling and is continuously lit when the ICP-E(SCI) is operated – in these two states the LED will show red. The LED will show amber when a short-circuit is present but will switch to red if the unit is activated. A built in test function initiated by the control panel ensures the integrity of the device at all times and the device can be tested by insertion of a test key in the underside of the unit. Two terminal blocks are provided for easy connection to the loop wiring. The unit is addressed using the TCH-B200 Hand Held Programmer for quick and reliable addressing. The unit can be flush mounted as supplied. A Surface Mounting Box and a wall Flush Plate are included.
