HCP-E(SCI)

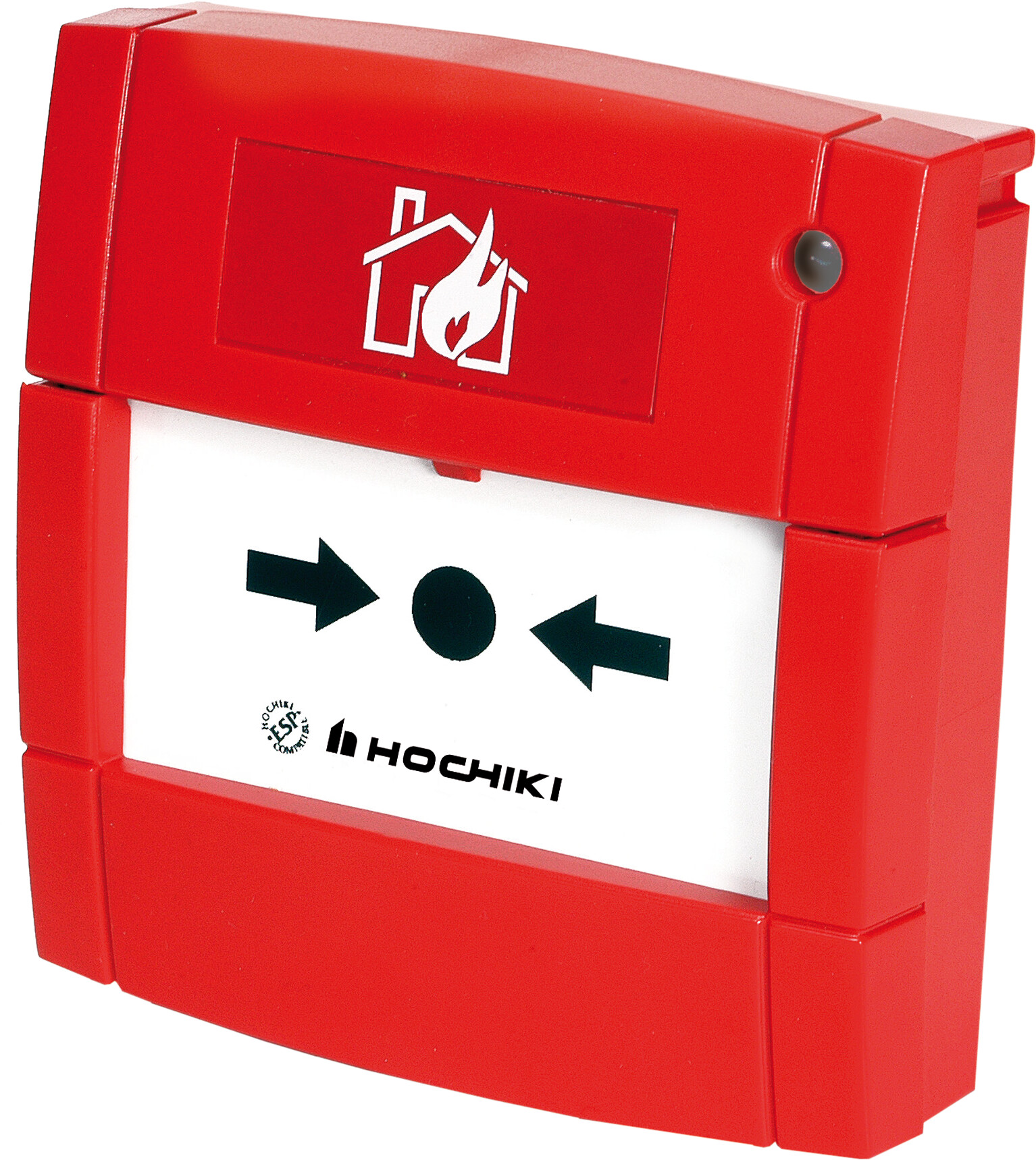

Model HCP-E(SCI) is a Manual Call Point with integral short-circuit isolator, which is fully compatible with Hochiki ESP analogue addressable protocol

The unit incorporates a bi-coloured LED, which can be selected as pulsing/non-pulsing for communications polling (1) and is continuously lit when the HCP-E(SCI) is operated. In these two states the LED will show red.

The LED will show amber when a short-circuit is present but will switch to red if the unit is activated.

The unit operates by pressing the EN54 compliant non-frangible (plastic) element and produces a high level ESP interrupt

A built in test function initiated by the control panel ensures the integrity of the device at all times and the device can be tested by insertion of a test key in the underside of the unit.

Two terminal blocks are provided for easy connection to the loop wiring.

The unit is addressed using the TCH-B200 Hand Held Programmer for quick and reliable addressing

The unit can be flush mounted as supplied. For surface fixing a suitable back box such as the SR MOUNTING BOX is required (sold separately)

An optional glass element is also available.

(1) Check control panel compatibility.
