Part of our educational life safety series for building owners, this article explains what a beam smoke detector is, how it works, its key features and benefits, and which projects best suit these types of products.

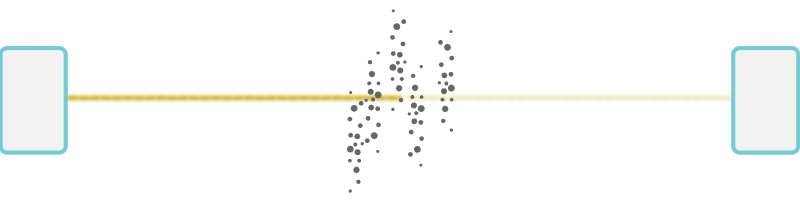

Beam smoke detectors operate on the principle of light obscuration, utilising infrared light beams to create an invisible detection barrier across protected space. This focused beam of light travels in a straight line from one end of the space to the other and is continuously monitored for any changes in its intensity.

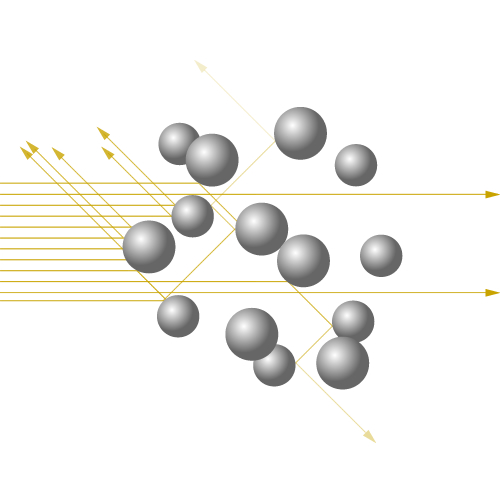

When smoke particles enter the beam path, they scatter and absorb the light, reducing the signal strength. The system's intelligent processing unit analyses this signal reduction and, when it exceeds predetermined thresholds, initiates an alarm condition. Modern beam detectors incorporate sophisticated algorithms to distinguish between genuine smoke conditions and temporary obstructions such as birds, insects, or steam, significantly reducing false alarm incidents.
This technology has evolved over time, to the point where newer systems can detect smoke at much lower concentrations and provide better performance in challenging environmental conditions such as high airflow areas or spaces with varying temperature conditions.

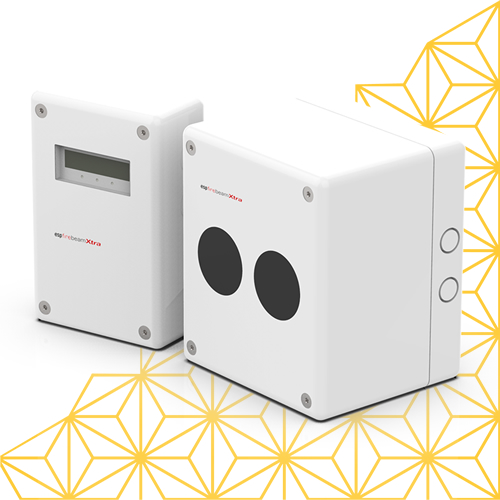

Traditional end-to-end systems consist of separate transmitter and receiver units positioned at opposite ends of the protected area. These systems offer maximum flexibility in coverage distance and are particularly effective in large open spaces where clear line-of-sight can be maintained between the two units. However, they do require more cabling, usually between the units, and in some cases separate wired power supplies.
Reflective systems combine the transmitter and receiver in a single unit, utilising a specialised reflector positioned at the far end of the detection area. The light beam travels from the detector to the reflector and returns to the same unit. This configuration simplifies installation by requiring power connection at only one location, making it particularly suitable for retrofit applications or areas where running cables to both ends would be challenging.
Warehouses, manufacturing plants, aerospace hangars and distribution centres are some of the ideal applications for beam detection systems. These environments typically feature large open spaces, high ceilings, and challenging conditions that favour beam detection over any alternative technologies. The ability to provide comprehensive coverage with minimal equipment makes beam detectors particularly cost-effective in these applications.
Large retail stores, shopping centres, multi-level hotel atriums, and exhibition halls benefit from beam detection's ability to provide protection without visual intrusion. The systems can be configured to follow the perimeter of protected areas or create detection grids across large spaces, adapting to complex architectural layouts.
Airports, railway stations, and transport terminals can utilise beam detectors to monitor large public areas, baggage handling facilities, and maintenance areas. The robust performance characteristics, their reliability and their easy maintenance make them well-suited to the demanding operational requirements of transportation facilities.
Churches, museums, and historic structures often require fire detection systems that minimise both structural and visual impact, whilst still providing effective protection. Beam detectors can be discretely and safely installed to protect large volumes while preserving architectural integrity and avoiding intrusive point detector cabling installation throughout historic spaces.
Successful beam detector installation requires thorough site survey and planning to identify optimal positioning for transmitter units, receiver units, and reflectors. Key considerations include:
Ensuring clear line-of-sight between units without obstructions
Evaluating potential interference from environmental factors such as steam, dust, or vehicle movements
Assessing structural suitability for mounting equipment at required heights and on stable fixing surfaces
Planning cable routes and power supply requirements
Precise alignment between transmitter and receiver units is crucial for reliable operation. Professional installation teams can use specialised alignment tools and signal strength meters to achieve optimal positioning.
But modern beam detectors now generally incorporate either manual alignment aids such as LED indicators or digital displays, or automatic mechanical and electronic self-alignment features, to simplify this process even more, and ensure accurate installation.
Beam smoke detectors generally require less frequent maintenance than traditional point detectors due to their design characteristics. However, regular maintenance remains essential to ensure continued reliable operation and compliance to local standards:
Daily Visual Inspections: Verification of LED status indicators and checking for obvious obstructions or damage
Periodic Functional Testing: Testing alarm functionality using appropriate test equipment or built-in test features
Annual Professional Maintenance: Comprehensive inspection, cleaning, and calibration by qualified technicians
Optical Component Cleaning: Periodic cleaning of transmitter and receiver lenses to maintain optimal signal transmission
Modern beam detectors can incorporate drift compensation and self-monitoring capabilities within their software, that automatically adjust both the base line and fire threshold for any gradual environmental contamination over time. This maintains the device’s ability to provide early warning of maintenance requirements at any point in its lifecycle.
Beam detectors integrate seamlessly with conventional fire alarm control panels through standard detection circuits. Advanced beam systems can also provide additional information such as signal strength levels, location and maintenance status to intelligent addressable fire alarm systems, through the fire system protocol, enabling sophisticated system monitoring and diagnostics.
While beam detectors may have higher individual unit costs compared to traditional point detectors, they often provide superior economic value when protecting large areas. Key economic advantages include:
Reduced total system cost through fewer required devices
Lower installation costs due to simplified cabling requirements
Reduced ongoing maintenance costs through extended service intervals
Minimised business disruption during installation and maintenance activities
Enhanced reliability, reducing false alarm costs and system downtime
The beam detection industry continues to evolve with technological advances that improve performance and expand application possibilities. Recent developments include:
Enhanced signal processing algorithms that improve detection sensitivity while reducing false alarms
Wireless communication capabilities, including Bluetooth connectivity, enabling easier installation and system integration
Advanced diagnostic capabilities providing detailed system performance information
Integration with building management systems for comprehensive facility monitoring
Environmental compensation features that automatically adapt to changing conditions
Smart-device app-based system set-up, monitoring, and maintenance
Building owners should understand that beam detectors, while highly effective in appropriate applications, have certain limitations:
They require clear line-of-sight between transmitter and receiver units
Performance can be affected by severe environmental conditions such as heavy fog, dense steam or extreme sunlight
They detect smoke presence along the beam path but cannot provide precise location information
Installation requires professional expertise to ensure proper alignment and commissioning
Beam smoke detection devices represent a sophisticated and cost-effective solution for fire detection in large open spaces. Their ability to provide comprehensive coverage with minimal equipment makes them particularly valuable for building owners managing warehouses, retail spaces, industrial facilities, and other large-volume applications.
Understanding the capabilities, limitations, and proper applications of beam detection technology enables building owners to make informed decisions about fire protection systems. When properly designed, installed, and maintained by qualified professionals, beam smoke detectors provide reliable early warning fire detection that protects both property and occupants while meeting all relevant UK and European safety standards.
As with all life safety systems, consultation with certified fire protection professionals remains essential to ensure appropriate system design, compliant installation, and ongoing maintenance that preserves system reliability and regulatory compliance.
