Fire Control Panels
LAACE11010H1

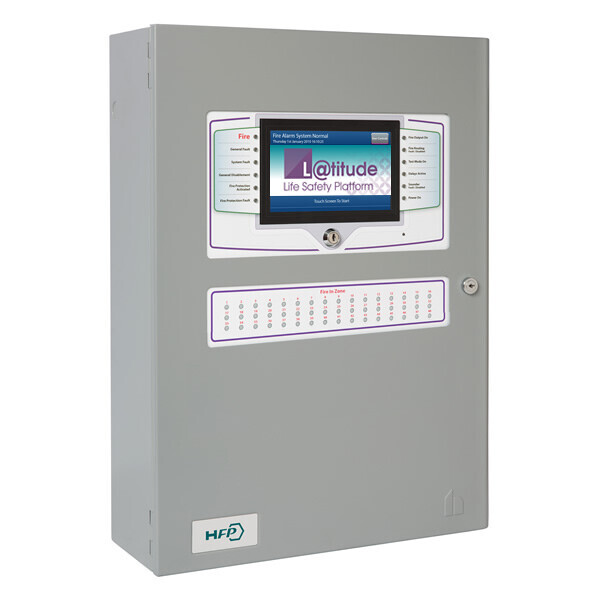

LAACE11010H1 Latitude, CP10 standard, 4 Slot, 2 Loops, 1 Aperture, 5.25A 240V PSU
14504080-00
Colore: Grey (Light)
Tono: No
Colore del LED: No Light
Conforme RAEE: Non Applicabile
Conforme ROHS: Non Applicabile
- Compliant with EN54-2, EN54-4, EN54-13
- 500mA loop current
- 4 programmable sounder circuits each rated at 2.5 A, 5.25 A or 10.25 A, power supply options
- 3 programmable inputs
- 5 programmable relay outputs
- Hard wired fire and fault routing inputs and outputs
- Up to 512 programme Input/ Output via optional plug in and serially connected expansion cards
- Modular electronics
- Over 4000 sub address points per panel
- Option to “invert” inputs and outputs
- Powerful, standard configuration templates
- Network up to 127 panels
- Configurable via USB port to PC or memory stick
- 2 ancillary serial ports.
