HCP-W(SCI)

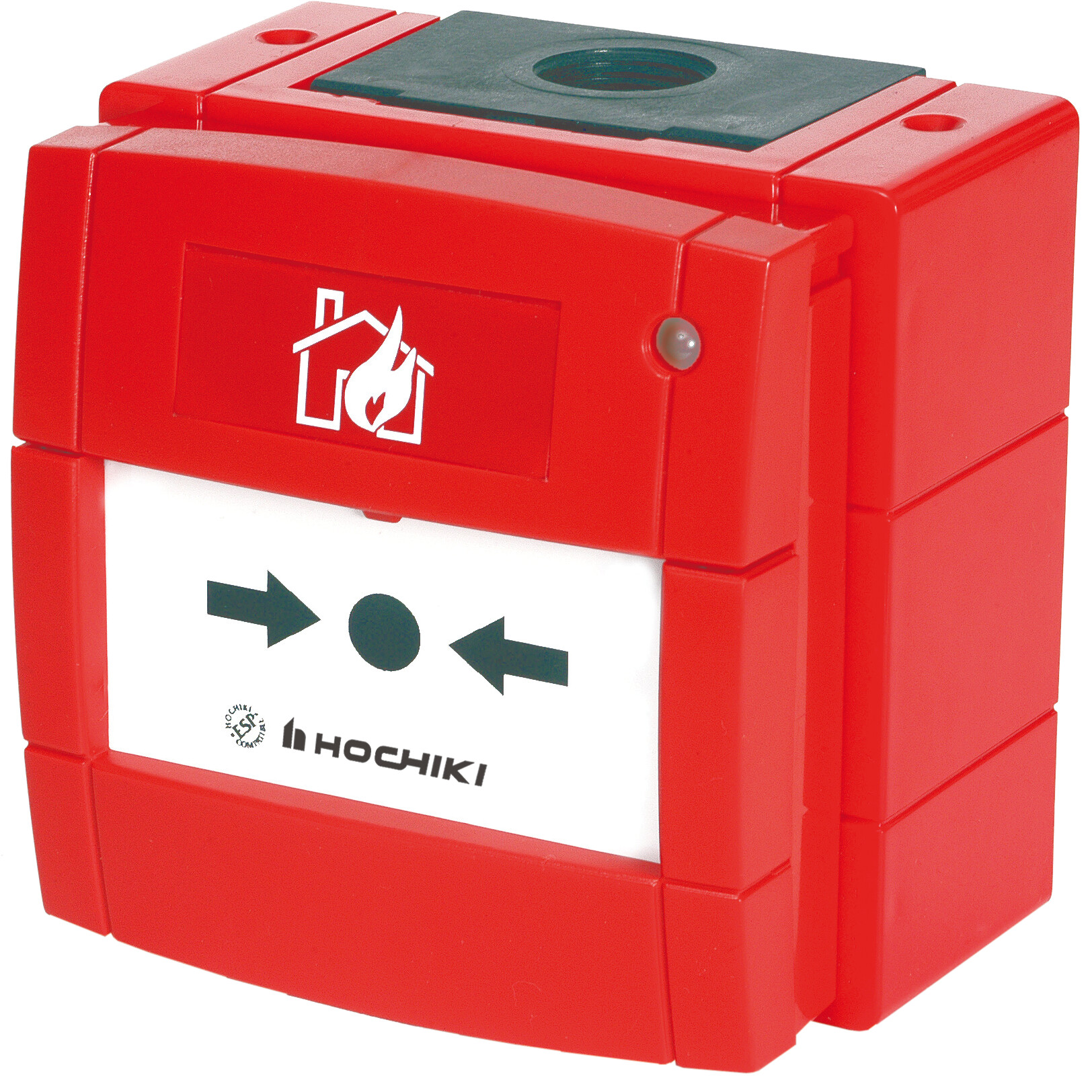

Model HCP-W(SCI) is a weatherproof Manual Call Point with integral short-circuit isolator, which is fully compatible with Hochiki's ESP analogue addressable protocol

The unit incorporates a bi-coloured LED, which can be selected as pulsing/non-pulsing (1) for communications polling and is continuously lit when the HCP-W(SCI) is operated. In these two states the LED will show red. The LED will show amber when a short-circuit is present but will switch to red if the unit is activated

The unit operates by pressing the EN54 compliant non-frangible (plastic) element and produces a high level ESP interrupt

A built in test function initiated by the control panel ensures the integrity of the device at all times and the device can be tested by insertion of a test key in the underside

Two terminal blocks are provided for easy connection to the loop wiring

The unit is addressed using the TCH-B200 Hand Held Programmer for quick and reliable addressing

An optional glass element is also available

(1) Check control panel compatibility
