Heat Sensors
ATJ-EN(WHT)SCI

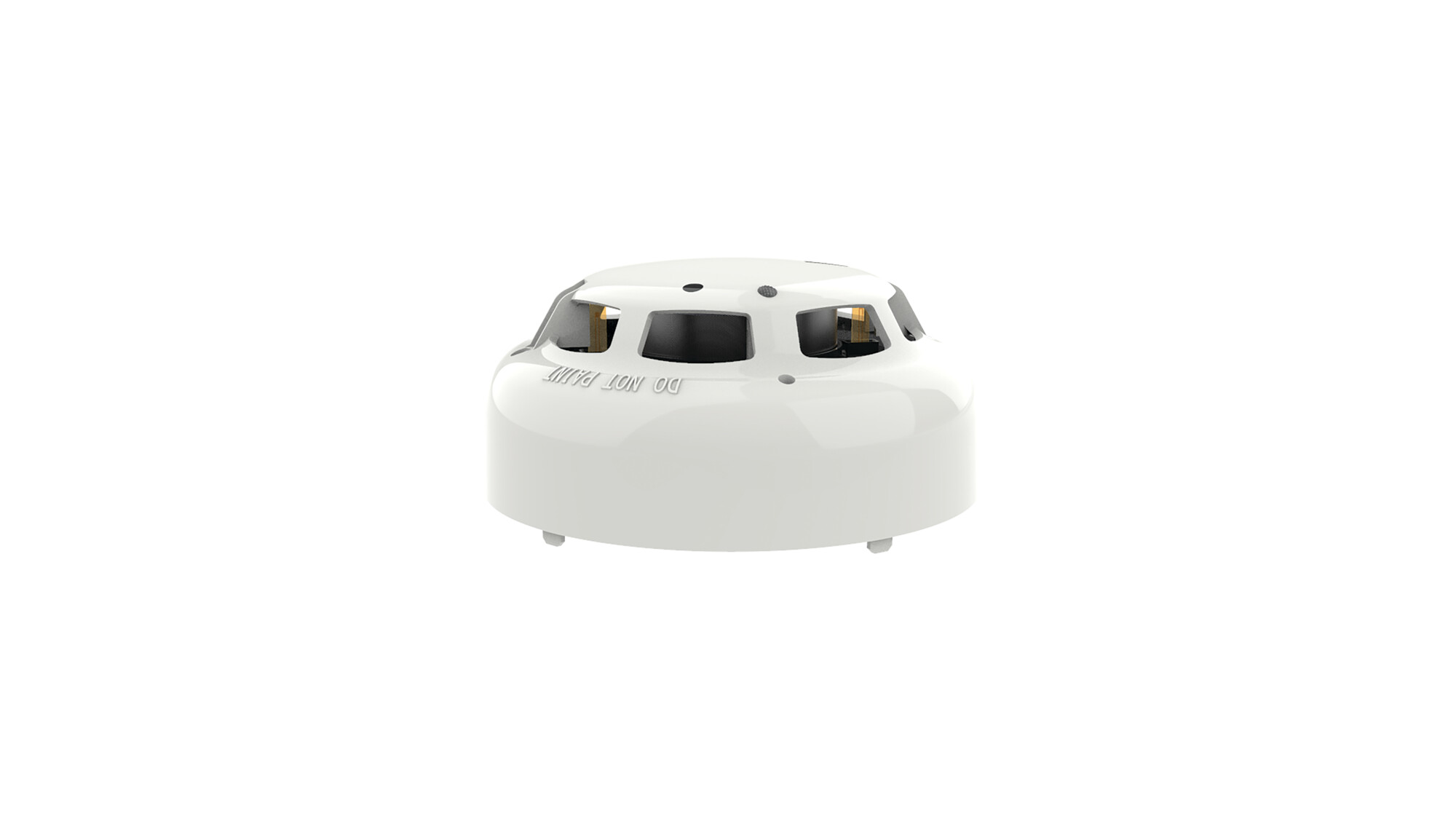

ATJ-EN(WHT)SCI INTELLIGENT HEAT SENSOR (ESP)
1415150-20
Colore: White
Tono: No
Colore del LED: No Light
Conforme RAEE: Non Applicabile
Conforme ROHS: Non Applicabile
- User selectable modes
- Incorporates Fixed Temperature and Rate of Rise Heat elements
- Twin LEDs allow 360° viewing – green when polling, amber when isolating, red in fire
- Pulsing/non-pulsing controlled from panel
- Electronically Addressed
- LPCB & VdS approved to Classes A1, B & C
Model ATJ-EN(WHT)-SCI is a Multi-Heat Sensor, which is fully compatible with Hochiki’s ESP Analogue Addressable Protocol. The ATJ-EN(WHT)-SCI incorporates a Variable Temperature heat element and a Rate of Rise heat element, both of which are controlled from the Control Panel, allowing either thermal element or both elements simultaneously to be active in making the fire decision. The sensor's polling LEDs can also be controlled via the Control Panel (pulsing/non-pulsing) dependent on control panel compatibility.
