Heat Sensors
ATJ-E(WHT)

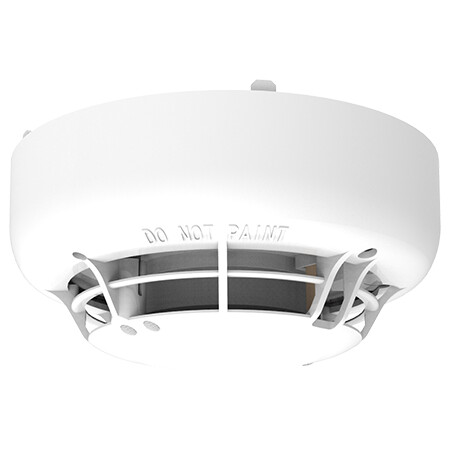

ATJ-E(WHT) INTELLIGENT HEAT SENSOR (ESP)
1415200-20Conforme RAEE: Non Applicabile
Conforme ROHS: Non Applicabile
-
User selectable modes
-
Incorporates Fixed Temperature and Rate Of Rise Heat elements
-
Twin LEDs allow 360 viewing – green when polling, turn red in fire
-
Pulsing/non-pulsing controlled from panel*
-
Electronically addressed
-
LPCB & VdS approved to Classes A1, B & C
-
SIL Level 2 approved variant available.
Model ATJ-E is a Multi-Heat Sensor, which is fully compatible with Hochiki’s ESP Analogue Addressable Protocol.
The ATJ-E incorporates a Variable Temperature heat element and a Rate Of Rise heat element, both of which are controlled from the Control Panel, allowing either thermal element or both elements simultaneously to be active in making the fire decision. The sensor polling LEDs can also be controlled via the Control Panel (pulsing/non-
pulsing)*.
*Control Panel compatibility required
